BIOS

AMI UEFI BIOS

Graphics

Processor Graphics

Intel UHD Graphics

Multi displays

3

Interface

1 x DP1.2£¨4K@60Hz£©, 1 x HDMI 1.4£¨4K@30Hz£©, 1 x HDMI 2.0 (80Pin£¬£¬£¬£¬£¬£¬£¬4K@60Hz£©

Memory

Type

Onboard LPDDR5/5x 4800/5600/6400MHz

Max

32GB

Ethernet

Lan IC

2 x  Realtek Gigabit Ethernet

Interface

10/100/1000Mbps

Connector

2 x RJ45(Option)

Wireless

Type

Wi-Fi/BT module£¬£¬£¬£¬£¬£¬£¬Support WIFI 5+BT5.0/WIFI6+BT5.2

Interface

1 x M.2 2230

Storage

Type

SSD

Interface

1 x M.2 2280 SATA/PCIe×ÔÊÊÓ¦

1 x M.2 2280 SATA

IO Interface

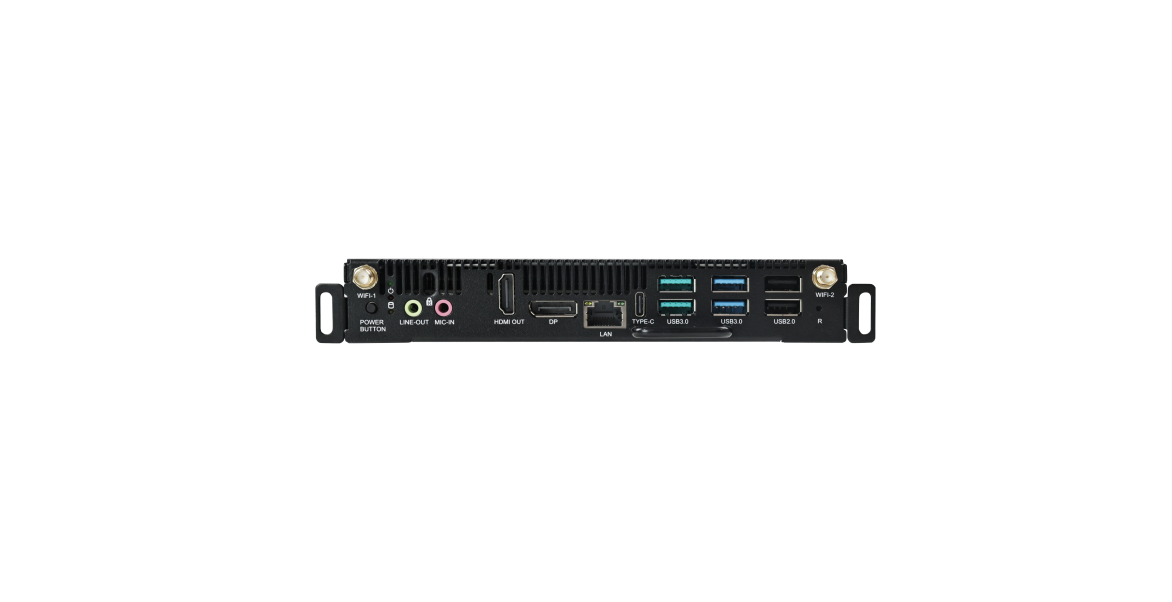

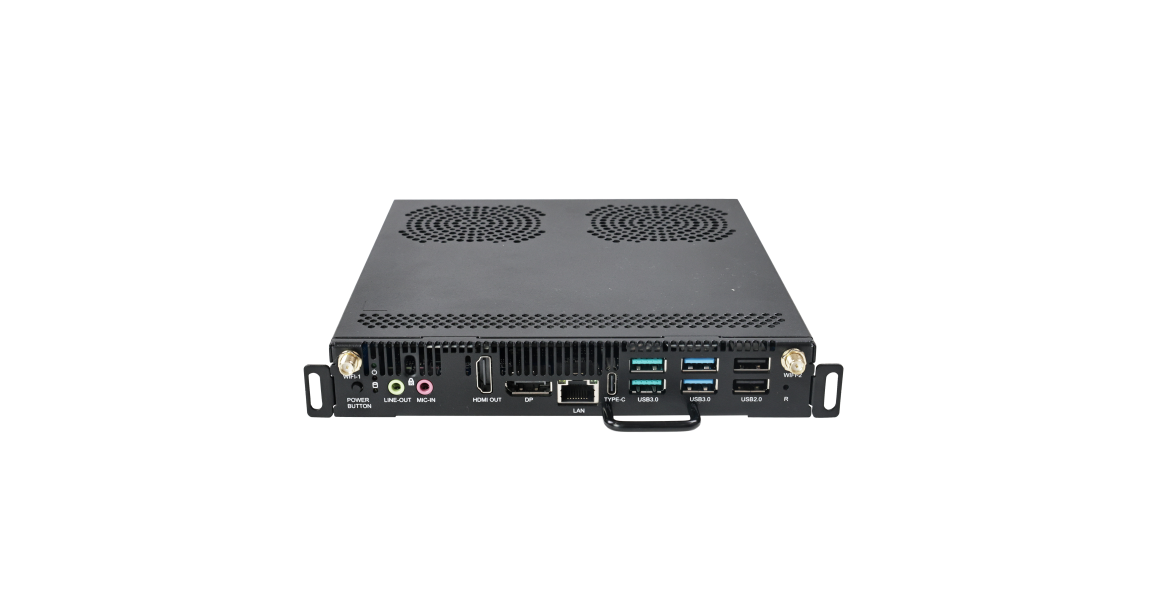

Front panel

1 x HDMI out 1.4, 4K@30Hz

1 x DP out 1.2, 4K@60Hz

1 x HDMI in 2.0, 4K@60Hz(Option)

2 x USB 2.0(colay RJ45)£¬£¬£¬£¬£¬£¬£¬4 x USB 3.0£¬£¬£¬£¬£¬£¬£¬1xType-C USB2.0(Option)

1 x RJ45

1 x MIC IN£¬£¬£¬£¬£¬£¬£¬1 x LINE OUT

2 x Wi-Fi/BT ANT

1 x Power button£¬£¬£¬£¬£¬£¬£¬1 x Recovery button

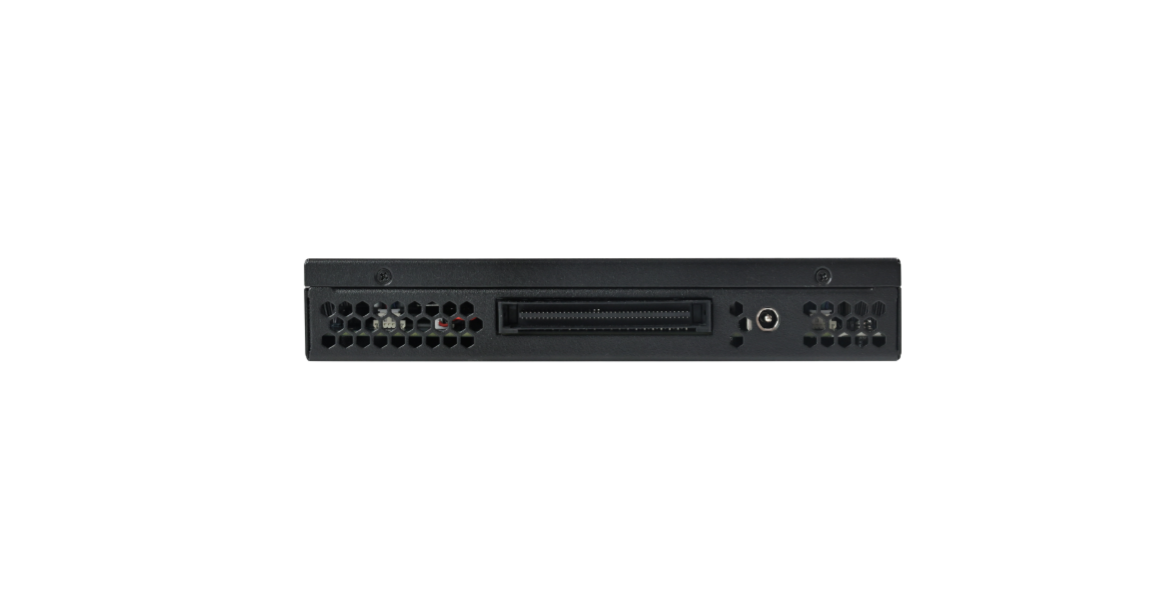

Rear panel

OPS-C 80pin: 1xHDMI2.0£¬£¬£¬£¬£¬£¬£¬2 x USB2.0£¬£¬£¬£¬£¬£¬£¬1 x USB3.0£¬£¬£¬£¬£¬£¬£¬1 x TTL

1 x 2.5/5.5 DC IN JACK

Software

OS Supports

WINDOWS 10/WINDOWS 11/LINUX

Watchdog

Support

vPro/AMT

No

TPM

TPM2.0£¨Option£©

Power

Power input

12~19V DC IN,  2.5/5.5 DC Jack

Size

195 x 180 x 30 mm

Weight

N.W

0.9kg

G.W

1.2kg

Environment

Operating Temp.

0~40¡æ

Operating Humidity

10%~90% non-condensing

Storage Temp.

-20~70¡æ

Storage Humidity

5%~95% non-condensing
